ATC-BM Material Composition

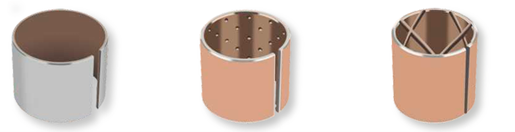

ATCORP, ATC-BM is a metallic composite material consisting of a steel strip as a supporting backing and a sintered-on, self-lubricating bronze sliding layer. The solid lubricant (graphite or PTFE) dispersed in the sliding layer under preload enables the sliding bearing to be used without the need for maintenance.The maintenance-free and self-lubricating material is available in different alloy variants and material thicknesses. The two-layer material structure enables the implementation of compact and highly resilient sliding bearing concepts that function reliably.ATC-BM properties include high static and dynamic load capacity, maintenance-free operation, a low Coefficient of friction, suitability for dusty and corrosive environments, and dimensional stability due to no water absorption. It is used in a wide range of applications where traditional lubrication is difficult or impossible, providing economic and reliable performance
| Property | Unit | Value | Applications |
|---|---|---|---|
| Static Load Capacity | Mpa | 300 | Standard Material for General Industrial, Hydropower Turbine, Steam Turbines, Nuclear Power, Construction and agriculture industry, Butterfly valves, Steel plants equipments, Tire molding machines, Injection molding machines, material handling equipments and many more. Please contact the ATCORP Sales team for more application details. |
| Dynamic Load Capacity | Mpa | 100 | |
| Coefficient of Friction | 0.03-0.15 | ||
| Min Temperature | °C | 350 | |
| Max Temperature | °C | -180 | |
| Sliding Speed | m/s | 0.5 | |
| Max Pv Value | N/mm²xm/s | 1.5 | |
| Hardness | HB | 40 |
