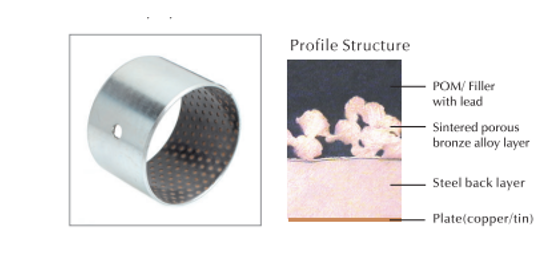

ATC200 Material Composition

Steel Backing material with Uniformly distributed porous Bronze intermediate layer and sliding layer of POM/Fillers Black colour. ELV/ROHS Compliance material with less frictional properties and wear rate.ATC-200 is a Marginally lubricated sliding bearing. Work well in oil Lubricated, Grease lubricated conditions. High Load capacity, good chemical resistance, Very Good Temperature resistance. Not recommended in dry applications.

ATC100
Performance IndexUnitsValue
Max Dynamic LoadMpa70
Max Staic LoadMpa140
Working Temperature°C- 40 - + 120
Max Linear Velocitym/s2.5
Max Pv Valuesm/s x Mpa2.8
Coefficient of Friction0.06 -0.12

Benefits of ATC200

  • Suitable for high load capacities and low speed with rotational, oscillating or frequent stop-start motion.
  • Can work for a long time without oil in the condition of boundary lubrication, under oil or grease lubrication interval, the working-life will be longer. Suitable for linear, swing, and rotary motion.
  • Machinable version available on demand.
  • Works well in grease lubricated condition, in Oil lubricated condition provide satisfactory result, However not recommended for dry applications.
  • Standard part available in stock, Global acceptability of sizes
  • Compact and light v/s Steel or bronze bearings
  • High static and dynamic load capability
  • Seizure resistant
  • Lead-free material compliant to ELV, WEEE, and RoHS specifications
