ATC207 Material Composition

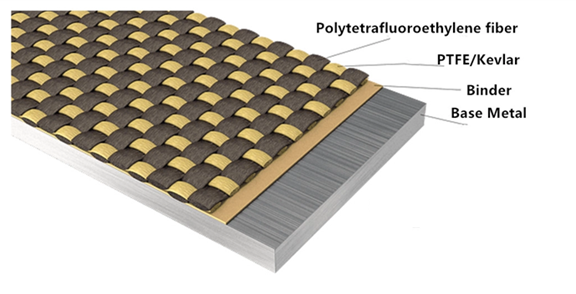

Low Carbon Steel Backing material with PTFE fibers fabric and aramid fiber overlayed on metal backing. PTFE Fabric provides self-lubrication properties while Aramid fibers provide excellent wear resistant in critical applications.ATC-207 is a Self-lubricated sliding bearing. Work best in grease Lubricated conditions., oil, water and fluid performance is good. Suitable for use with low viscosity fluids. Low friction factor and wear rate, impact resistance and fatigue resistance.

ATC100
Performance IndexUnitsOil LubricatedDry
Dynamic LoadMpa140140
Static LoadMpa250250
Working Temperature°C-195 - + 280-195 - + 280
Max Linear Velocitym/s105
PV Valuesm/s x Mpa3.63.6
Coefficient of Friction0.04 – 0.160.04 – 0.20

Benefits of ATC207

  • ATC207 is commonly used in applications requiring heavy load capacity, good wear and tear resistance, and operation in harsh environments. Applications with high-pressure and oscillating movements, such as plunger pumps.
  • Hydropower station, turbine water guide mechanism, ball valve, butterfly valve.
  • Heavy lift systems for trucks, tractors, forklifts and related equipment, such as rocker arm bushing, etc.
  • Steering system, braking system and connecting rod fulcrum of clutch of trucks, buses and agricultural tractors.
  • Motor steering system, such as a motor pivot, is installed externally at the stern.
  • Butterfly valve and ball valve, bearing comply with NSF drinking system structure parts health standards.
  • Food machinery, textile machinery, printing machinery, tobacco machinery, packaging machinery, medical equipment.
  • Supporting bearings for Bridges, pipelines and other structures.
  • Lifting machinery, especially the main boom, moving boom, foot fulcrum and other parts of the fulcrum can’t be lubricated.
