ATCOGLIDE Material Composition

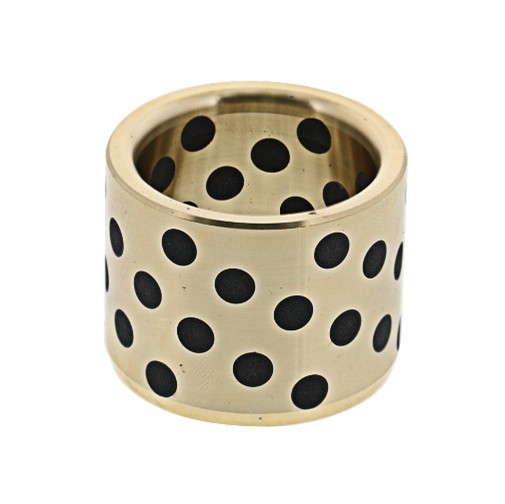

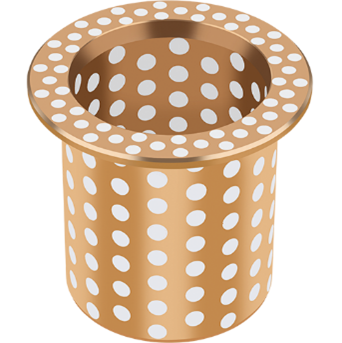

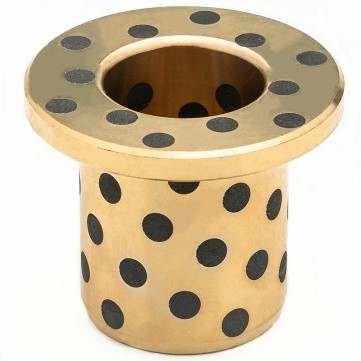

Casted Bronze Material with Soild lubricants of PTFE (Poly tetra flouro ethylene) or Graphite. Plugs Distributed uniformly to cover 27-30% area of Bush Bearings, Plugs Matrix help to provide uniform lubrication on overall inner layer of BushPlugs also designed in such a way to stop dropping of plugs while installation of bush in housing.
| ATCO-GLIDE Grade | Standard | Alloy Number | ASTM % Weight | Density (Gm/Cm³) | Thermal Expansion | Tensile Strength (Mpa) | Hardness HB | Yield Strength | Uses |
|---|---|---|---|---|---|---|---|---|---|
| ATCO-GLIDE-GI | B584-Sand Casting B271-Centrifugal Casting B505-Continuous Casting |
C93200 | Cu 81-85, Sn 6.3-7.5, Pb 6-8, Ni 1 | 8.85 | 18.3 | 240, 260, 280 | 70, 90 | 120, 180, 70 | General industrial applications |
| ATCO-GLIDE-PB | B584-Sand Casting B271-Centrifugal Casting B505-Continuous Casting |
C92500 | Cu 83-88, Sn 8.5-11.5, Pb 0.5 max, P 0.3 max, Ni 0.5 max, Zn 2 max | 8.75 | 17.2 | 240, 260, 280 | 80, 90 | 130, 150 | Leaded Bronze |
| ATCO-GLIDE-W | B584-Sand Casting B271-Centrifugal Casting B505-Continuous Casting |
C95500 | Cu 77, Al 11.5, Ni 5.5, Fe 5 | 7.60 | 16.5 | 600, 650 | 140, 150 | 250 | Sea water and corrosive environment |
| ATCO-GLIDE-H | B584-Sand Casting B271-Centrifugal Casting B505-Continuous Casting |
C86300 | Cu 65, Al 6, Fe 2-4, Mn 2-3, Zn 22-28 | 8.15 | 18.0 | 750, 850 | 150, 170 | 450, 480 | Heavy loads & Low/High Speed |
| ATCO-GLIDE-E | B584-Sand Casting B271-Centrifugal Casting B505-Continuous Casting |
C90800 | Cu 85, Sn 12, Ni 0.5 | 8.72 | 18.1 | 260, 280, 300 | 80, 90 | 150 | Exceptional bearing properties and high resistance to wear |
