ATC-CB01 Material Composition

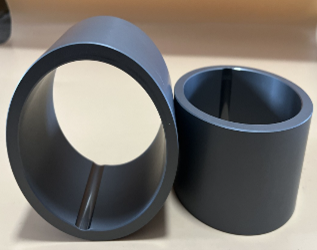

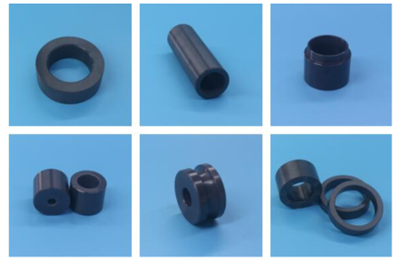

ATC-CB01 Bush Bearings area type of plain bearing made from Ceramic Silicon Carbide and fillers to improve frictional and wear properties of base Material ATC-CB01 is a very hard and durable ceramic material that offers several advantages in bearing applications, especially when traditional steel bearings struggle in demanding environments.
| Base Material | Density (G/Cm³) | Hardness (HRC) | Modulus of Elasticity (Gpa) | Bending Strength (3 points) (Mpa) | Compressive Strength (Mpa) | Thermal Coefficient (25°C) (W/m·K) | Thermal Expansion Coefficient (1×10⁻⁶/°C) |
|---|---|---|---|---|---|---|---|
| RBSiC | 3.05 | 90 | 367 | 387 | 2097 | 164 | 4.3 |
| SSiC | 3.12 | 92.3 | 418 | 401 | 2206 | 119 | 4 |
| SSiC+C | 2.94 | 245 | 239 | 866 | 126 | 3.9 | |
| Porous SSiC | 3.0-3.05 | 91 | 311 | 275 | 133 | ||
| Porous SSiC+C | 2.8-2.94 | 232 | 220 | 117 |
